Football Manager 2012 Patch 12.1.1. By Al Dean NC Optimiser is a postprocessing tool that executes after NC code has been generated, performing a real-time analysis of forces on the machine tool (feed rate); compares it with the stock left on geometry; and optimizes the feed rate accordingly. There is a clear split in the vendors operating in the CAD/CAM industry. There are general-purpose CAD tools providing basic CAM support and then there are those heavily engaged in the production environment developing tools to solve real manufacturing issues. One of the leaders in the latter category is UK-based Vero Software.
VISI-Vero, Gloucester. 1,217 likes 51 talking about this 3 were here. VISI is part of Hexagon. Like Hexagon at www.facebook.com/hexagonab. Vero VISI 2017 R1 Free Download VISI is acknowledged as one of the world's leading PC based Vero VISI 2017 R1 Free Download software. December 15, 2016.

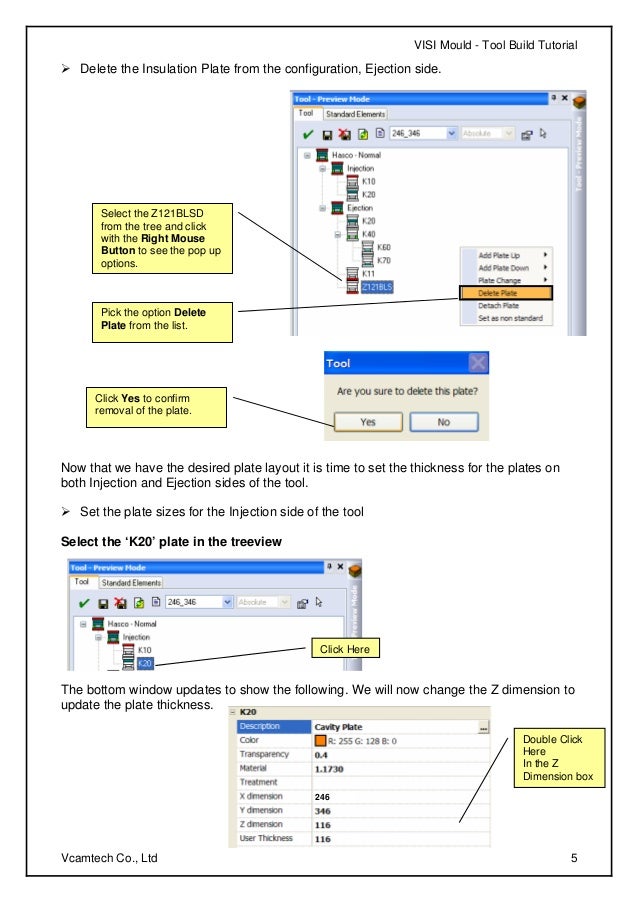

The company has been building its depth of knowledge and impressive level of detail in process and task support for the mold, die, and machining industry for the past three decades. The system covers everything from 2D and 3D CAD (it was the first system to implement Parasolid on the Windows platform) to mold, die, and electrode design and analysis, as well as a whole host of machining covering everything from 2.5- to 5-axis milling. Of course, when you have a system with such breadth of functionality and knowledge built up over many years, you also find that the user experience starts to suffer. So, with this in mind, Vero began a process of looking at the system a few releases back, improving it and bringing it up to date with a complete reworking of the interface. This updating has been extended to areas such as geometry definition, modification, and manufacturing-process support. As a result, today’s VISI interface is clean and fresh, which helps with initial training.
It supports all modern requirements in terms of graphic display and functional dual-monitor support (something big-name CAD vendors haven’t yet got right). Specific updates At the base of the UI, you’ll find a small text entry box.
This allows you to quickly type in a search string that pops up a list of commands that match that string. For example, typing BLE will give you all of the blending commands. Geometry display has also received much attention. Plus, reflection mapping is now available, allowing you to use any bitmap image or industry standard zebra striping for surface evaluation. On the same subject, threaded holes are now displayed using a threaded bitmap representation, which is going to be really useful for those designing complex molds: It’ll be immediately clear whether a hole is threaded or not. You can also customize the colors of specific hole types to make design data less ambiguous.
Gta Vice City Mod Pc. There are a lot of updates to make your displays more efficient, such as quality control, more powerful dynamic sections with controls for capping and hatching sectioned faces. Finally, you can display a model at 1:1 scale (you input your screen size and it adjusts) and you can display the models in perspective mode. Modeling tools VISI is a hybrid modeling system — as any system for the mold and die industry should be — so you can create and modify both complex surfaces and solids equally. An interesting new feature is Drape Surface. Draping surfaces is available in other systems, where a surface is theoretically dropped onto a collection of points or surfaces to create a single skin that covers the entire form. But the VISI version differs in that it allows you to work with more complex parts.
Specifically, it works with complex surface skins with multiple holes, open loops, and the like as is typical in the automotive industry and with Body In White in particular. You select the geometry, the direction of the drape, and how the system builds the surface (in terms of matching to the boundary edges and maintaining tangency). The surface looks like it could solve those really tricky surface-patching jobs that always give you a headache and require a lot of manual work. Another new surface tool is Large Offset, which is useful in the die industry where it’s common to create large offsets (60mm and up) from complex forms at the back of a die to save weight. This can cause problems where surfaces intersect or twist. The Large Offset command enables you to tessellate the surface, creating an offset from that mesh, and then resurface the resultant face.
